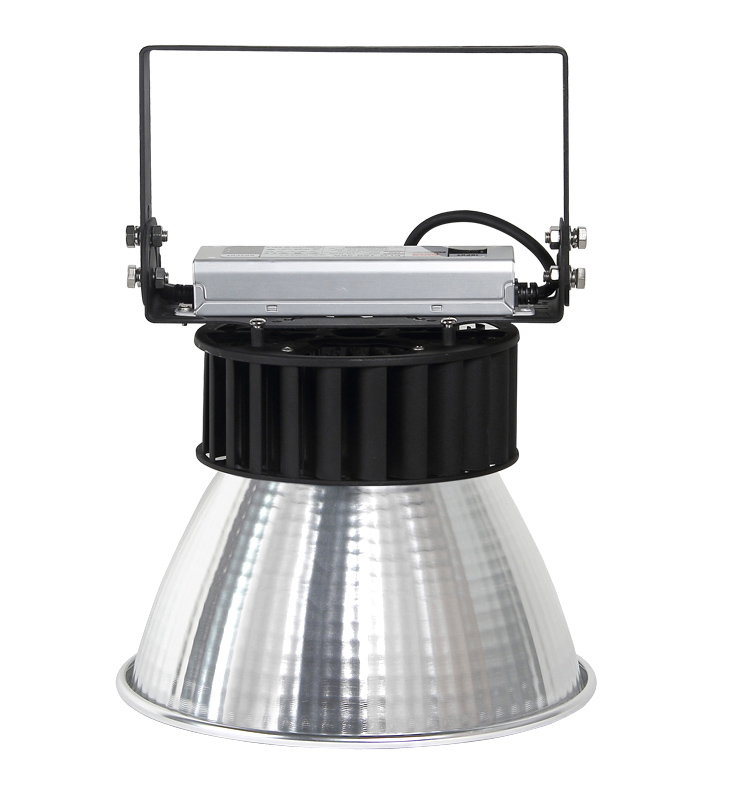

High lumen LED High Bay Light-BAY (100W-240W)
Description
Reviews
Key Features
● High intensity die-cast aluminum alloy housing with copper tube
● Excellent heat dissipation with good connection between LED models and housing
● Match with rectangular or round shaped LED driver, more choice ranges and application.
Applications
Workshop, factory, warehouse, highway toll station, gas station, super market, exhibition hall, gymnasium and other industrial
lighting place
Specifications
|
Product Model |
BD-540100P |
BD-540150P |
BD-540200P |
BD-540250P |
|
Rated Power |
100W |
150W |
200W |
250W |
|
Frequency Range |
50/60HZ |
50/60HZ |
50/60HZ |
50/60HZ |
|
Power Factor |
≥0.9 |
≥0.9 |
≥0.9 |
≥0.9 |
|
Efficiency (lm/W) |
140-150Lm/w |
140-150Lm/w |
140-150Lm/w |
140-150Lm/w |
|
Luminous Flux(lm) |
12000-13000Lm |
16000-17000Lm |
22000-24000Lm |
28000-30000Lm |
|
Working Temp |
-40°C—50°C |
-40°C—50°C |
-40°C—50°C |
-40°C—50°C |
|
Working Humidity |
10%~90% |
10%~90% |
10%~90% |
10%~90% |
|
Color Temperature |
2700-6500K |
2700-6500K |
2700-6500K |
2700-6500K |
|
Color Rendering Index |
Ra≥75 |
Ra≥75 |
Ra≥75 |
Ra≥75 |
|
Life Span |
≥50000Hrs |
≥50000Hrs |
≥50000Hrs |
≥50000Hrs |
|
Protection Grade |
IP65 |
IP65 |
IP65 |
IP65 |
|
Net weight |
2.6kg |
3.3kg |
4.3kg |
5.1kg |
|
Gross weight |
3.1kg |
4.1kg |
5.3kg |
6.0kg |
|
Packing size(mm) |
255*255*280mm |
255*255*310mm |
255*255*350mm |
255*255*390mm |
