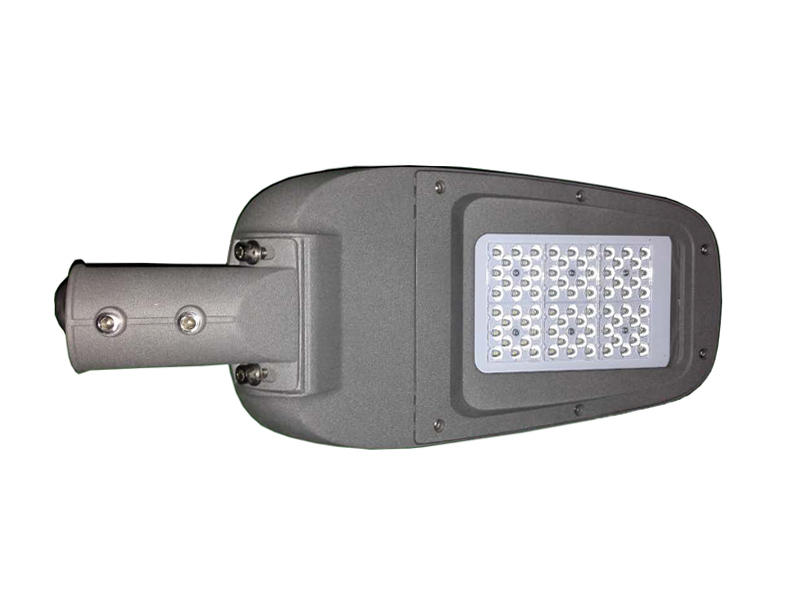

High Lumen LED Street Light-JASS series 30W 50W 60W

TUV certified CE approval, Patented steamline shape, High quality LEDs and power supply,5years warranty.

Description

Key Features

● High intensity die-cast aluminum body, impact grade reaches IK08

● Tempered glasses, steel bracket

● Modern stream-line design, nice surface

● Adjustable head, mounting inclination up to 15°

● With external surge protector lamp can reach 10KV

● CREE LED and MEANWELL driver provide reliable quality with 5-year warranty

● Big choices of different optics available allows to choose optical solutions for every application

Applications

The streets main roads, secondary road, expressway, the national roads, square, factories and other

lighting place

Specifications

产品型号	Product Model	BD-560030SJ	BD-560050SJ	BD-560060SJ
输入功率	Input Wattage	30W	50W	60W
LED 数量	LED quantity	36	72	72
色温	Color Temperature	3000-6500K	3000-6500K	3000-6500K
初始光通量	Luminous Flux(lm)	3900±5%	6500±5%	9000±5%
输入电压	Input Voltage	AC100-277V	AC100-277V	AC100-277V
频率范围	Frequency Range	50/60Hz	50/60Hz	50/60Hz
功率因素	Power Factor	PF≥0.9	PF≥0.9	PF≥0.9
显示指数	Color Rendering Index	Ra≥70	Ra≥70	Ra≥70
工作环境温度	Temperatura of Working Condition	-40-50℃	-40-50℃	-40-50℃
工作环境湿度	Humidity of Working Condition	20%-90%	20%-90%	20%-90%
LED寿命	LED Lifetime	5000h	5000h	5000h
防护等级	Protection Grade	IP66	IP66	IP66
安装管径	Installtion Pipe Diameter	φ48mm	φ48mm	φ48mm
安装高度	Installtion Height	4-6m	4-6m	4-6m
净重	Net Weight	3.0kg	3.0kg	3.0kg
毛重	Gross Weight	4.0kg	4.0kg	4.0kg
包装尺寸	Packing size	520160120mm	520160120mm	520160120mm
